ECG 7 Step Ruler

ECG 7 Step Ruler, ECG Ruler Plastic Ruler Measuring Tool, ECG 7 Step Ruler for ECG/EKG Interpretation, Transparent EKG Calipers Measuring Tool, Easy-to-Carry, Follow a 7 Step Plan, with Protect Sheath

Features:

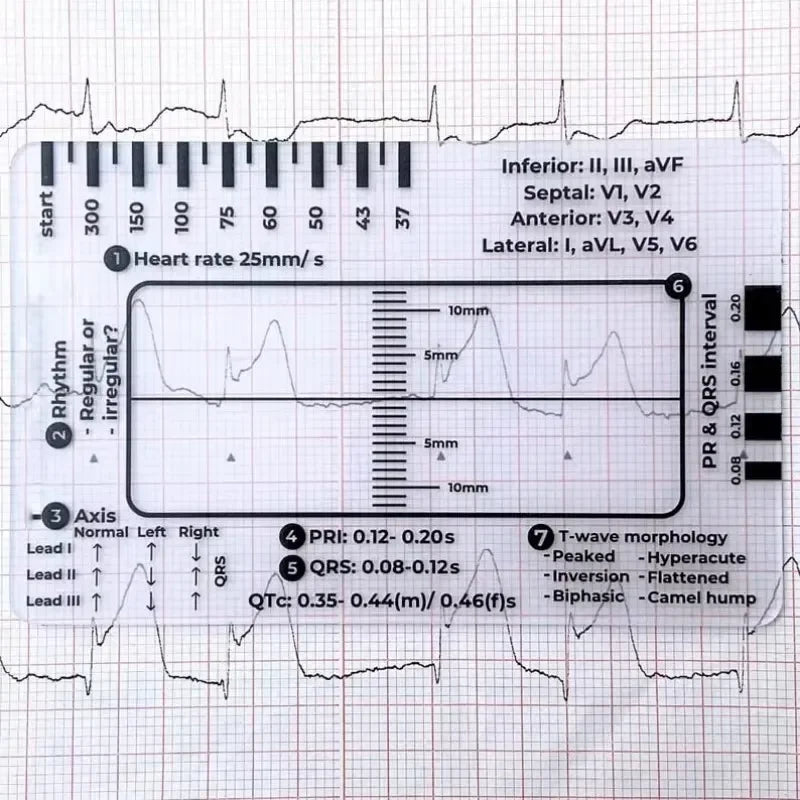

ECG 7 Step Ruler ECG/EKG assessment tool: A transparent ID sized card making ECG interpretation easy. Perfect sized to fit in your card holder for easy storage and access, specifically designed with the 7 step ECG interpretation method in mind. Anyone undertaking ECG/ EKG practise from a student up to an experienced clinician.

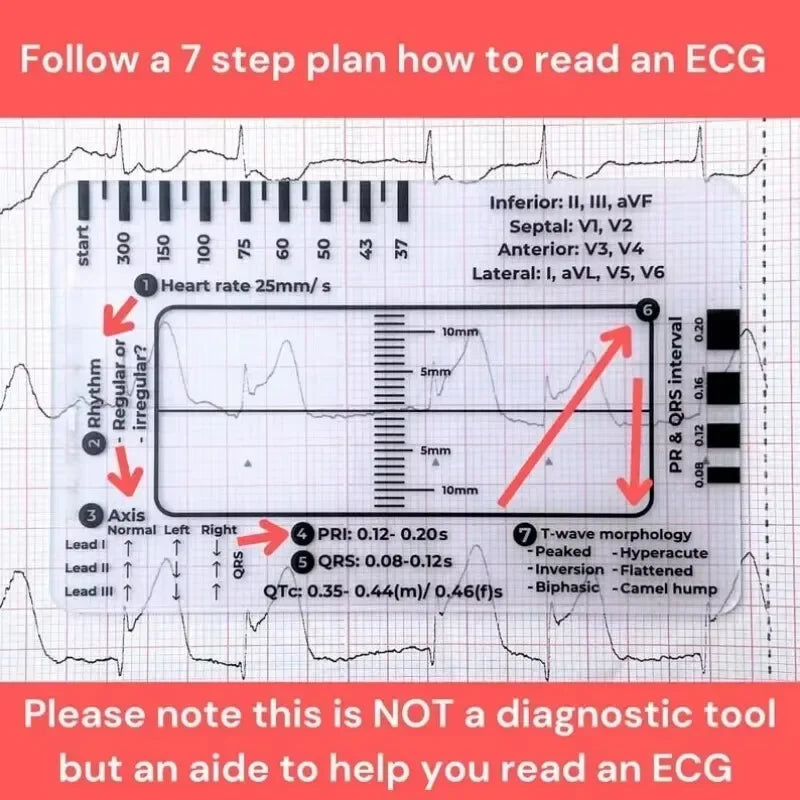

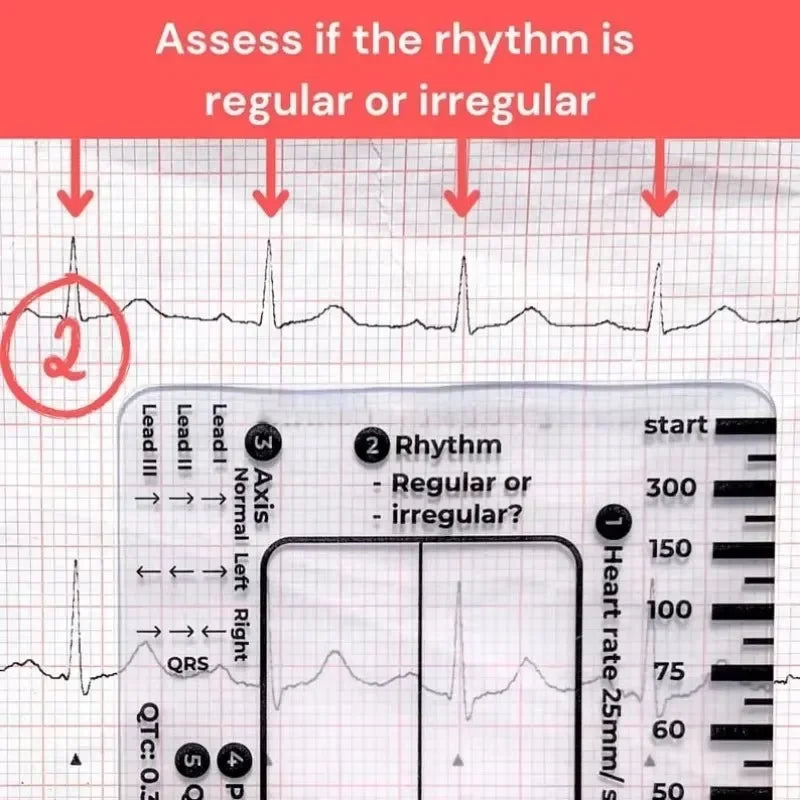

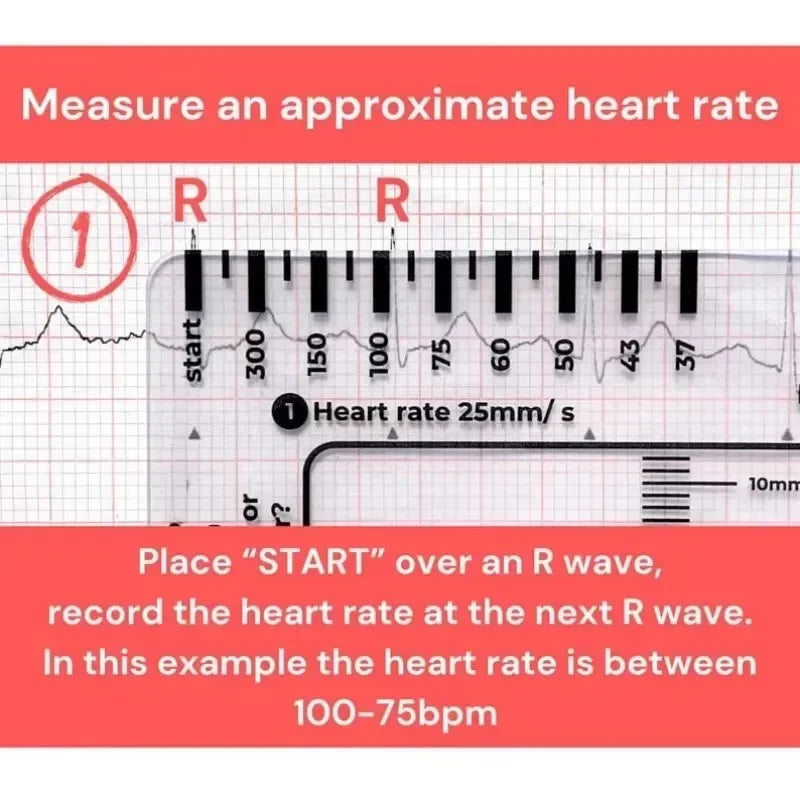

ECG/EKG 7 step ruler assessment tool. With a follow along step by step process with reference points along the way for those hard to remember key points! 1. Heart rate- This will provide a quick but approximate heart rate. 2. Rhythm- Assess whether the heart rate is regular or irregular.

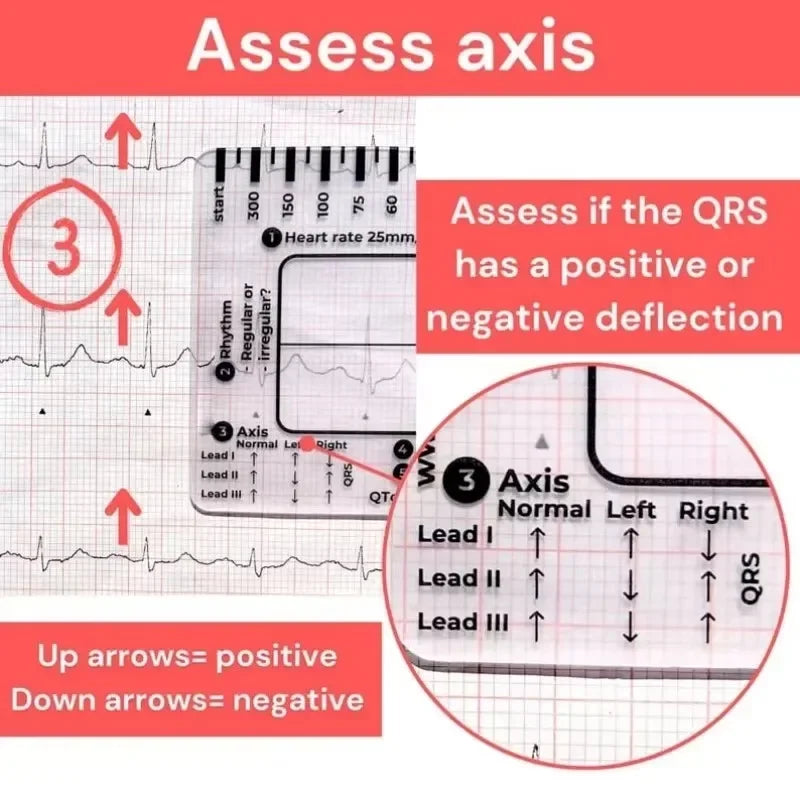

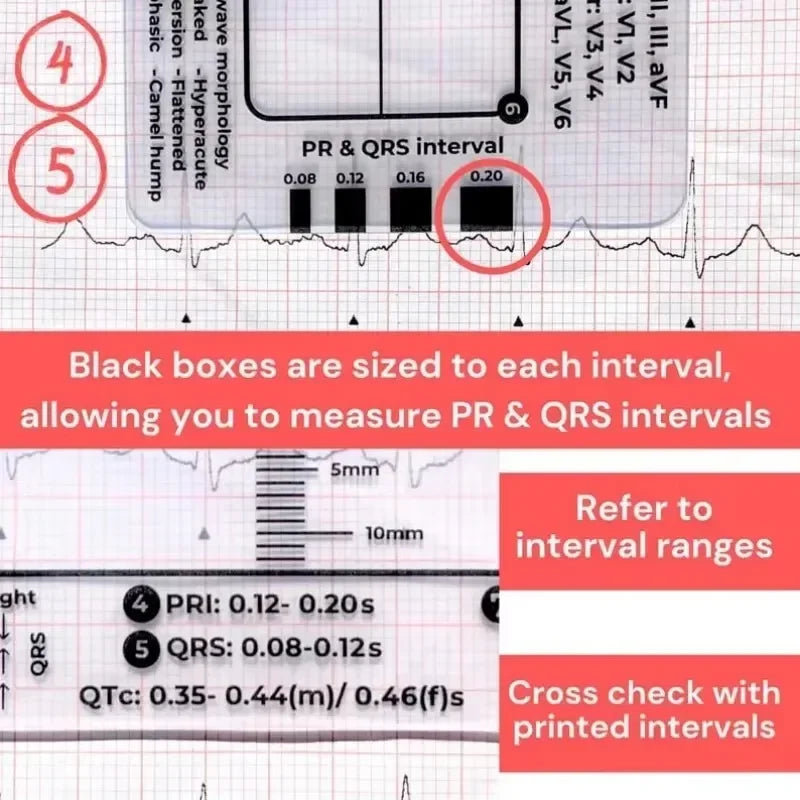

3. Axis- A quick reference for normal, left or right axis deviation. The arrows pointing up indicate a positive deflection & arrows pointing down indicate a negative deflection. 4. PR interval- This gives you a reference of the PRI range in milliseconds. Also to the right side, are blocks you can measure the PRI.

5. QRS interval- As above this gives you the range of the QRS & QTc in milliseconds and again you can measure the QRS interval with the blocks. 6. ST elevation/ depression- Place the straight back line along the isoelectric line to assess if there is either ST elevation or depression also there is a ruler so you can measure the degree of either in millimetres.

7. T wave- Lastly, a quick reference for potential T wave abnormalities. Plus top right references the leads view of the heart which comes in handy when identifying the area of a myocardial infarction. Remember: V1-V4= Anteroseptal MI & V3-V6= Anterolateral MI.
