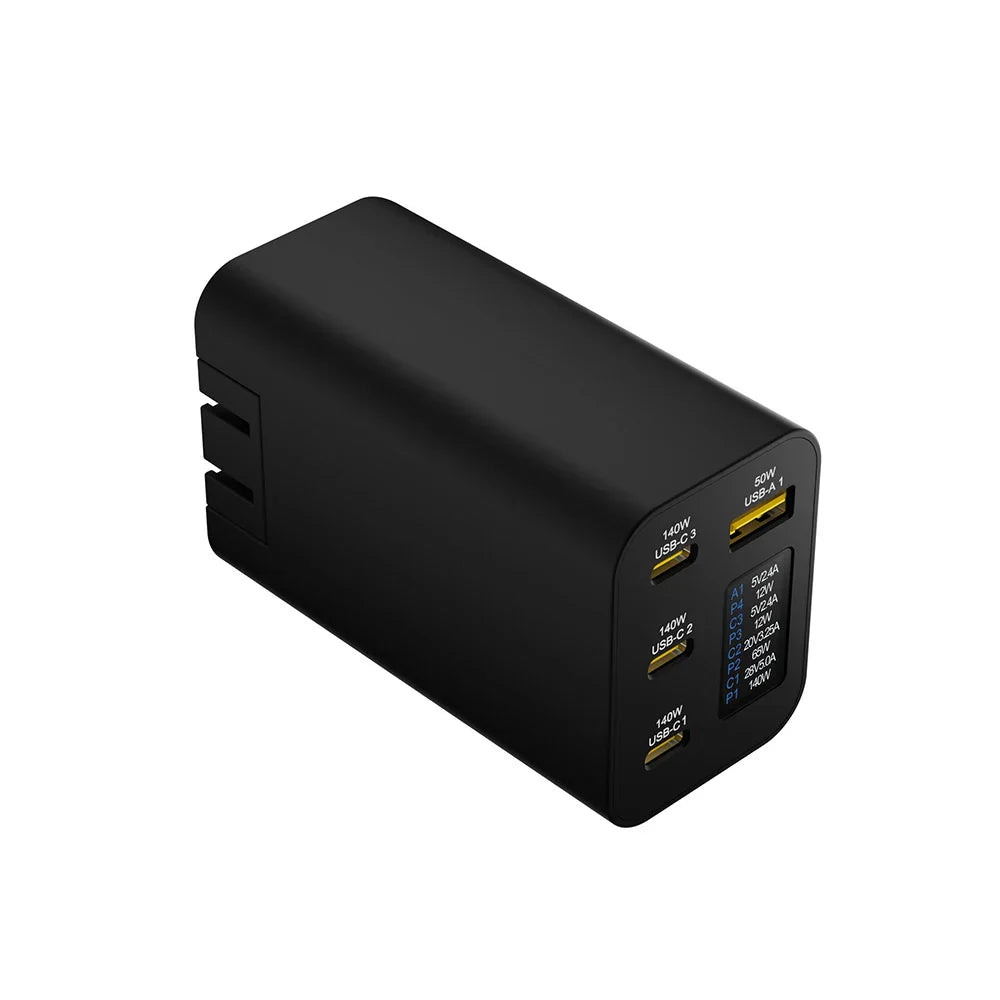

280W Zeus USB-C GaN Charger

Product Description

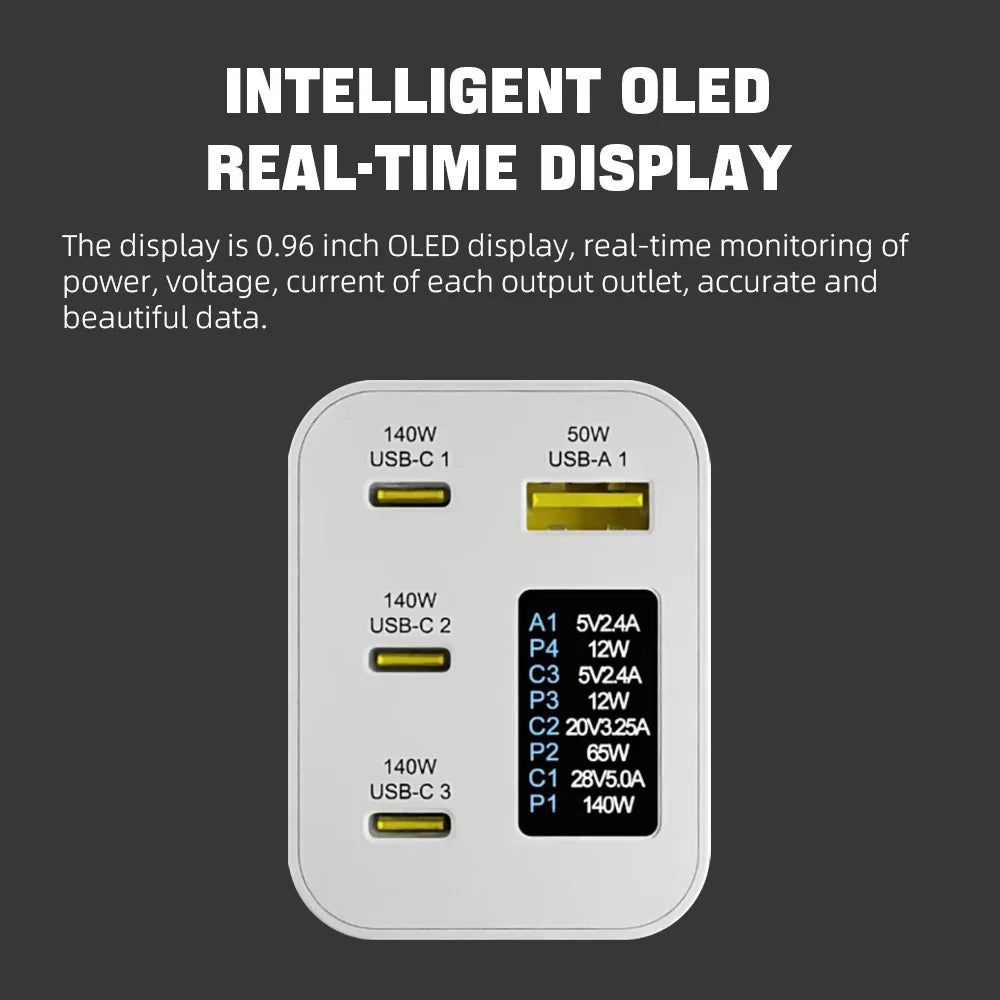

0.96-inch OLED display, which shows the power, voltage and current of each output port in real time. The blue labels and white numerical data are precise and aesthetically pleasing, with moderate brightness that is not harmful to the eyes. Power

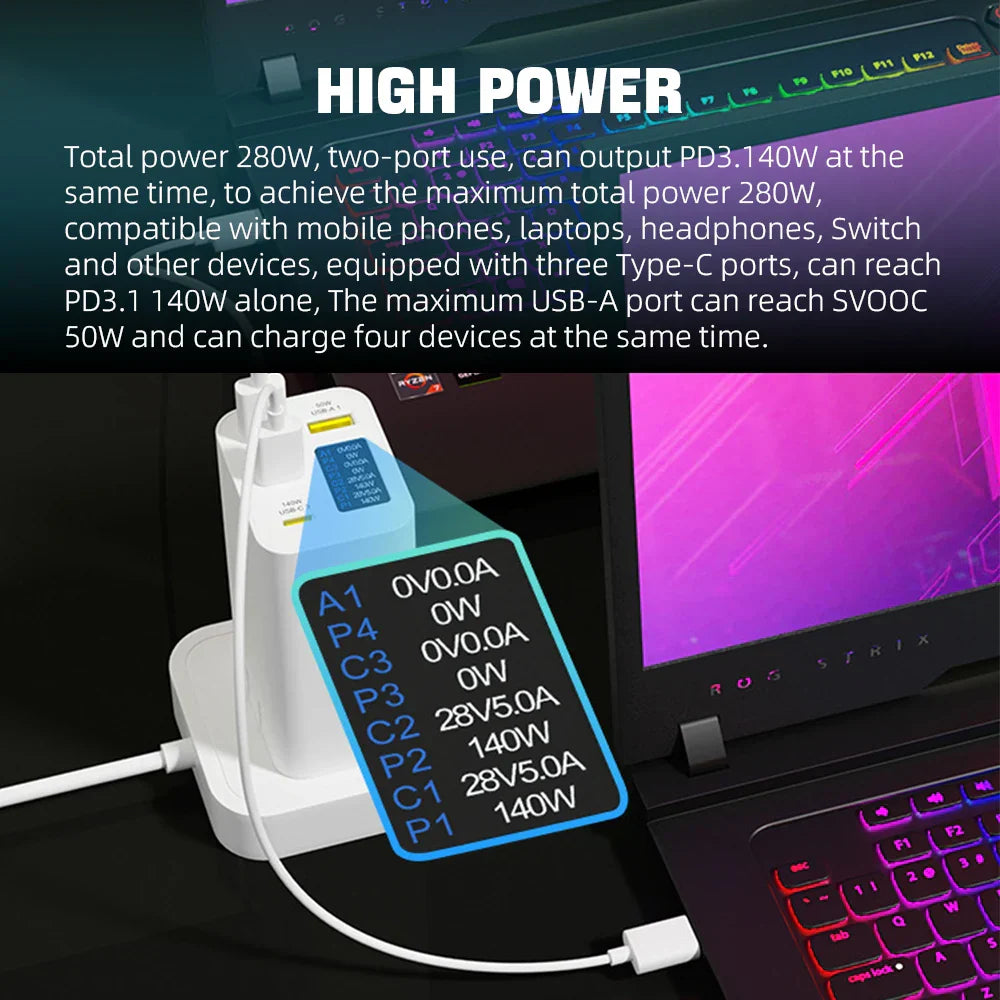

The total power is 280W. When two ports are used simultaneously, they can output PD3.1 140W each, reaching the maximum total power of 280W. It is compatible with various devices such as mobile phones, laptops, headphones, and Switch. It is equipped with three Type-C ports and one USB-A port. Each port can output up to PD3.1 140W when used alone. The USB-A port can reach up to SVOOC 50W. It can charge up to four devices at the same time. However, note that C3 and A1 are on the same circuit, and when used simultaneously, the power is only 12W each. The maximum power of 280W can only be achieved when two ports are used simultaneously. When three ports are used simultaneously, the maximum power is 270W, and when all four ports are used simultaneously, the maximum power is 229W. The following are the output characteristics:
Port 1: C1/C2/C3/USB A1 (+SVOOC): 140W/140W/140W/50W
Port 2: C1+C2/C1+C3/C2+C3/C1+A/C2+A/C3+A: 140W+140W/140W+140W/140W+140W/140W+50W/140W+50W/12W+12W
Port 3: C1+C2+C3/C1+C2+A/C2+C3+A: 140W+65W+65W/140W+65W+50W/140W+12W+12W
Port 4: 140W+65W+12W+12W
Please refer to the protocol diagram for the four ports.

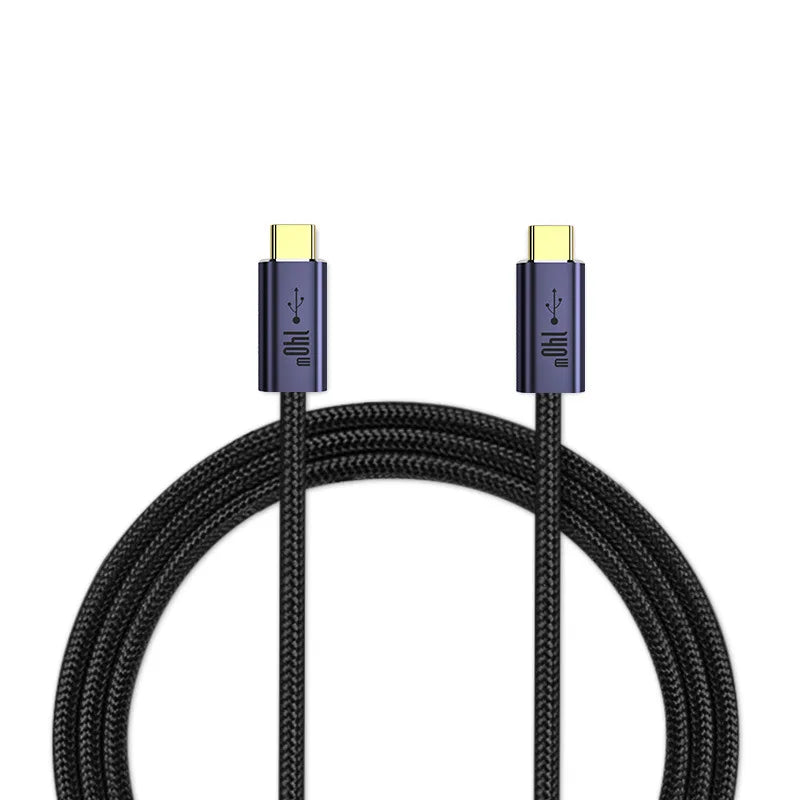

Note: The charger itself only has universal protocols, and most devices can be charged. The maximum power is the maximum power supported by the protocol. For mobile phones, the maximum protocol can charge at 50W with SVOOC, but the phone must also support the SVOOC fast charging protocol. The charging power of most mobile phones is the corresponding protocol charging power shown in the protocol test table. The PD3.1 charging protocol is mostly used in power-hungry devices such as laptops and is compatible with protocols below PD3.1, such as PD3.0 and PD2.0. It supports charging powers below PD140W and note that a data cable supporting PD3.1 is required. A PD3.1 140W data cable is included for convenience and testing.
Fast charging protocols:
Type-C: PD140W (5V3A/9V3A/12V3A/15V3A/20V5A/28V5A), PPS: 5-21V 5A
PPS/PD3.1/PD3.0/PD2.0/QC 4/QC3.0/QC2.0/AFC/FCP/SCP/PE2.0/PE1.1/SFCP
USB-A: QC36W (4.5V5.0A/5V4.5A/5V3A/9V3A/12V3A)
QC3.0/QC2.0/AFC/FCP/SCP/PE2.0/PE1.1/SFCP/SVOOC 50W
Plug specifications and portability:

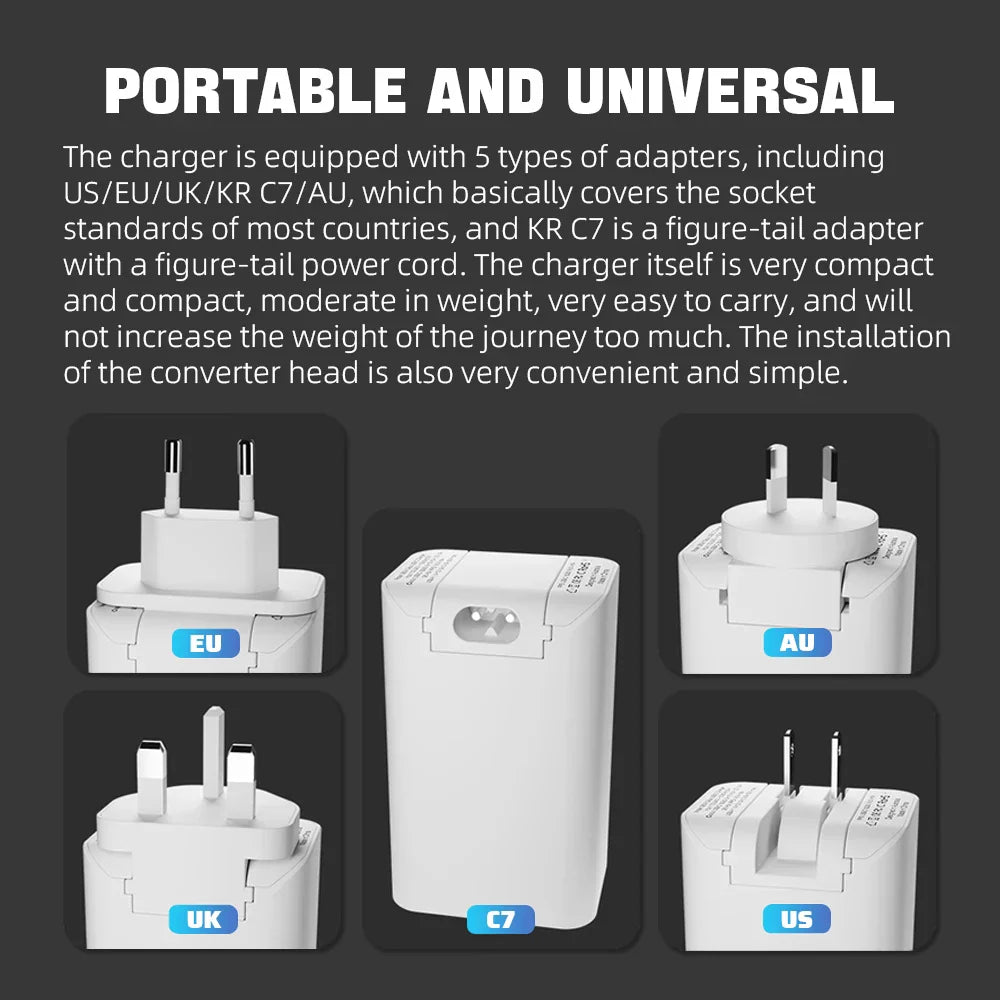

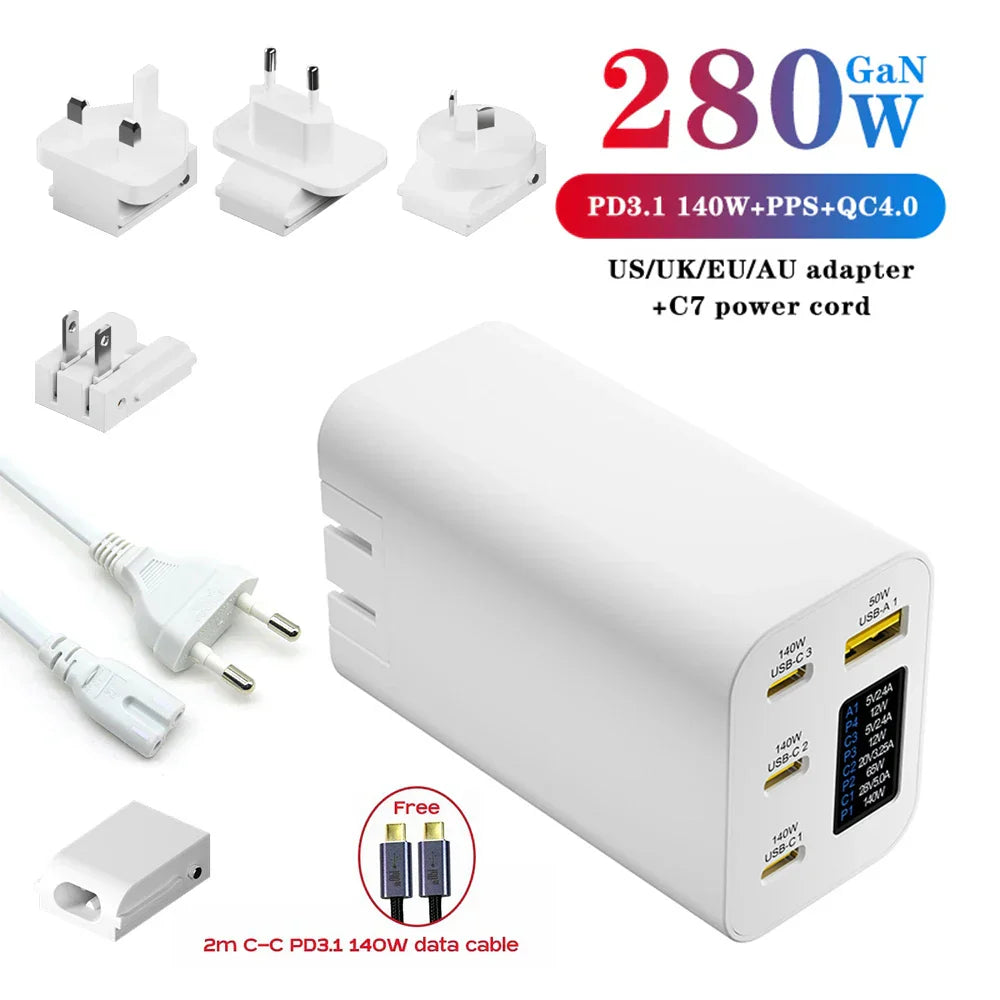

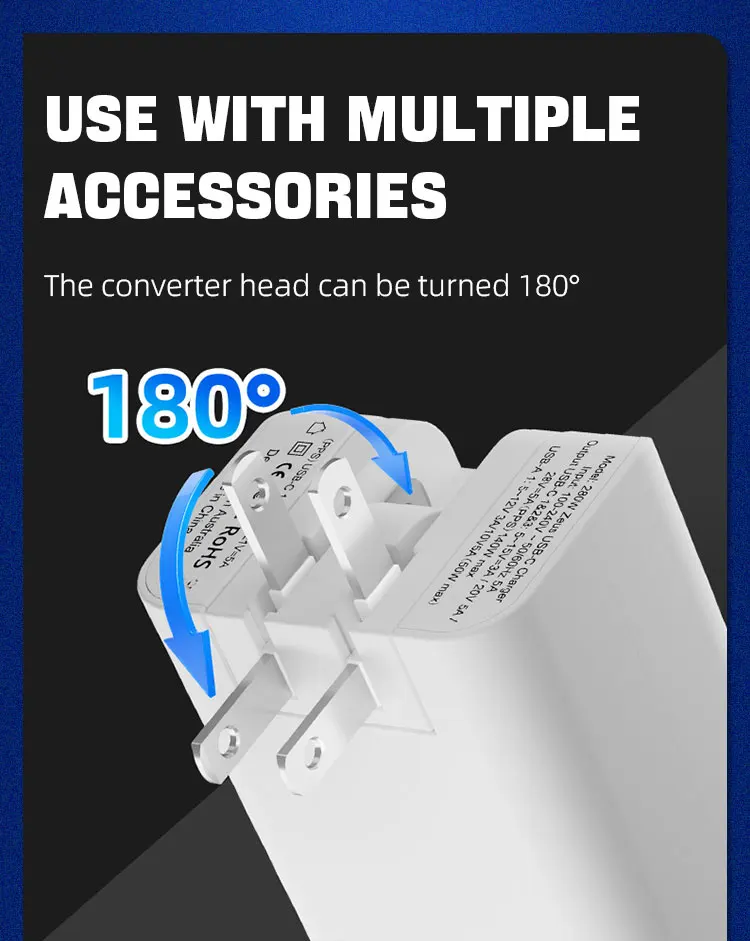

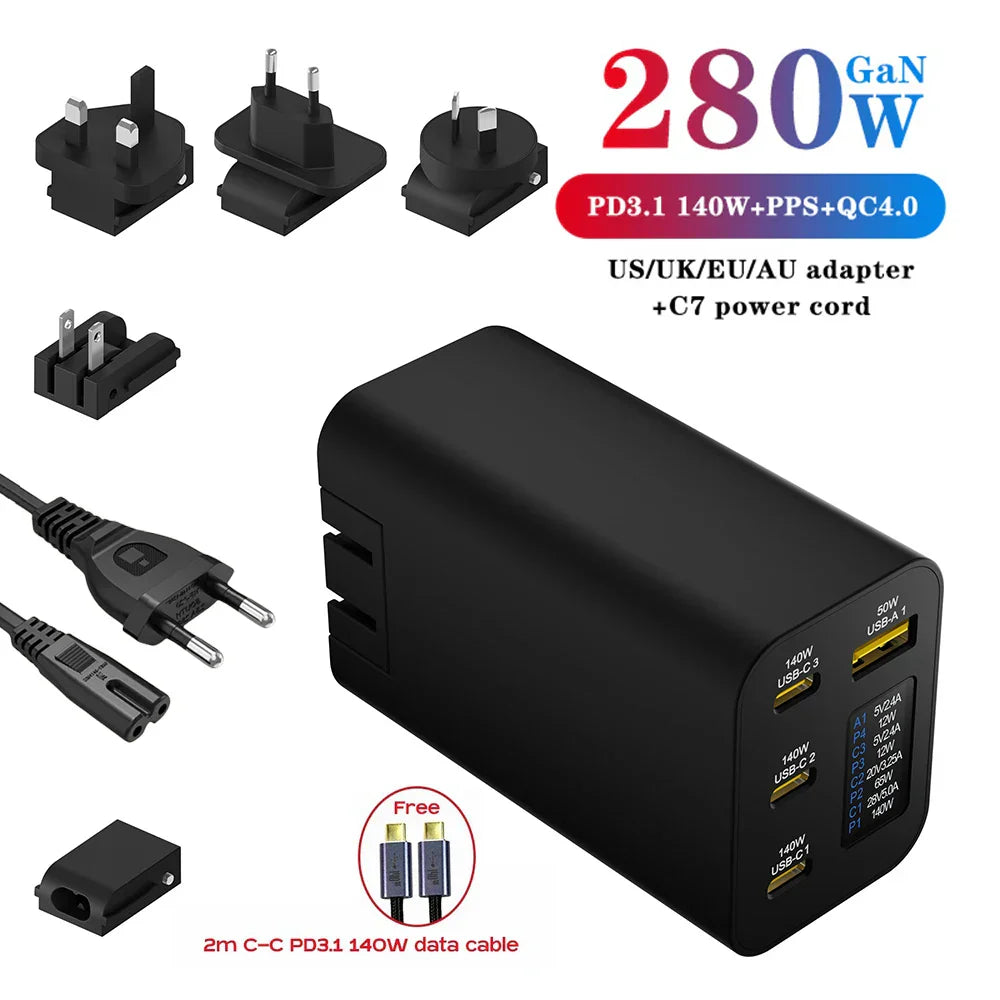

The charger itself comes as a complete set, including five types of adapters: US/EU/UK/KR C7/AU. The adapters are push-in snap-on, very convenient and simple. Note: For South Korea, it is a C7 adapter plus a power cord, meaning the South Korean specification is a T-shaped adapter with a power cord for South Korean standards.
The charger itself is very compact, making efficient use of the internal space, achieving a reasonable balance between volume and weight. It weighs approximately 600g and is very convenient to carry when traveling. Safety

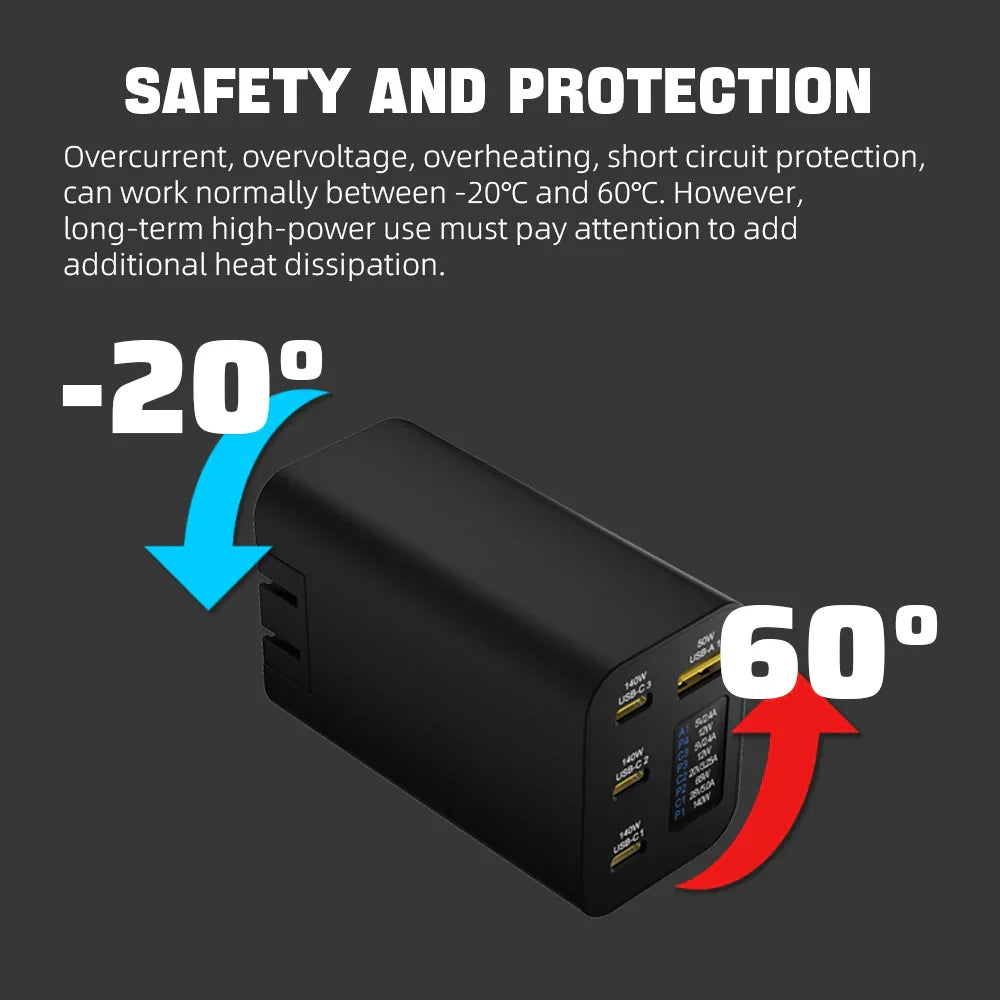

It features overcurrent, overvoltage, overheat and short-circuit protection and can operate normally within the temperature range of -20℃ to 60℃. However, when used for a long time at high power, extra heat dissipation measures must be taken.
